Vector Payments - POS Check Out and Reporting

Process Point of Banking (POB) payments at your retail checkout in Flourish Software and monitor transaction data in reports.

Table of Contents

POS check out

  1. In the POS, navigate to Queue > In-Store > Check Out.
  2. Locate the order, then click the Checkout button.
  3. If the order looks correct, click the Pay button.
  4. Click the Select a Till dropdown to select the correct Till.
  5. Select Point of Banking (POB). Flourish displays the Terminal with the status.

ONLINE

OFFLINE

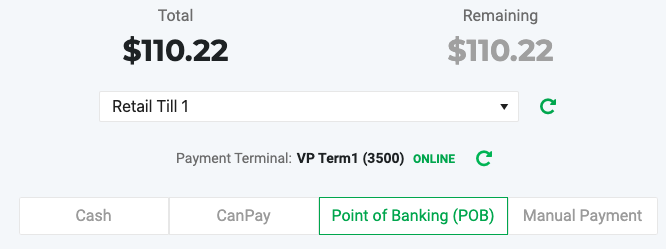

The image shows the Flourish POS payment screen during checkout, displaying an order total and remaining balance of $110.22, with "Retail Till 1" selected from the Till dropdown…

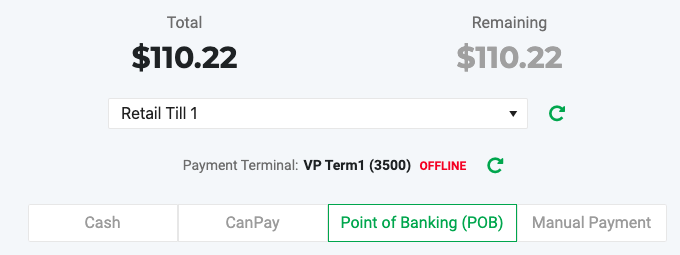

The image shows the POS payment screen in Flourish Software during the checkout process, displaying a $110.22 order total with "Retail Till 1" selected in the Till dropdown and the…
  1. Type the Point of Banking (POB) Amount or click Remaining.
    Note the text on the POS:
    “Vector Payments (POB) transaction amounts are rounded up to the nearest $5.00, not including transaction fees.”

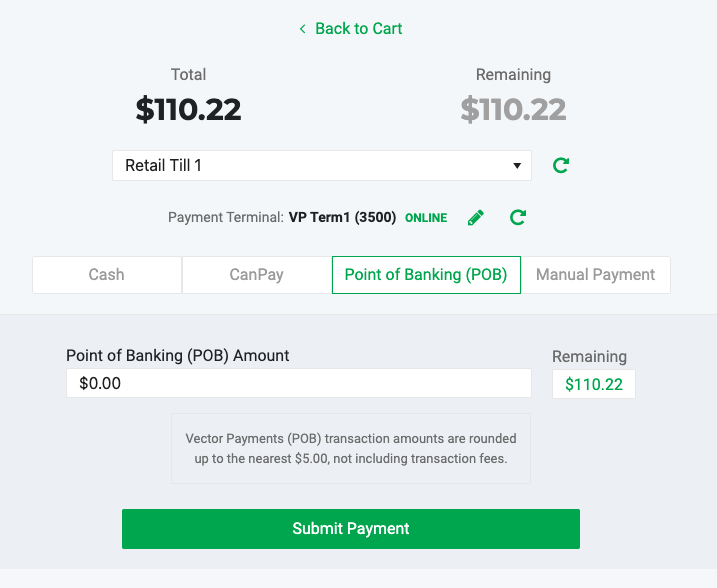

    The screenshot shows the Flourish POS payment screen during checkout, with an order total of $110.22 and the Point of Banking (POB) payment method selected.
  2. Click Submit Payment.
  3. View the orange prompts asking the user not to leave this page.

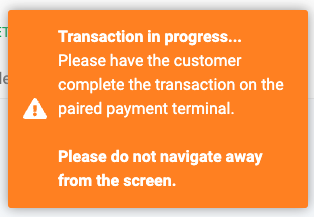

    The image shows an orange notification banner displayed in the Flourish POS interface during a Vector Payments (Point of Banking) transaction, reading "Transaction in progress...
  4. The Terminal prompts the user/customer for the next steps until the transaction is complete.

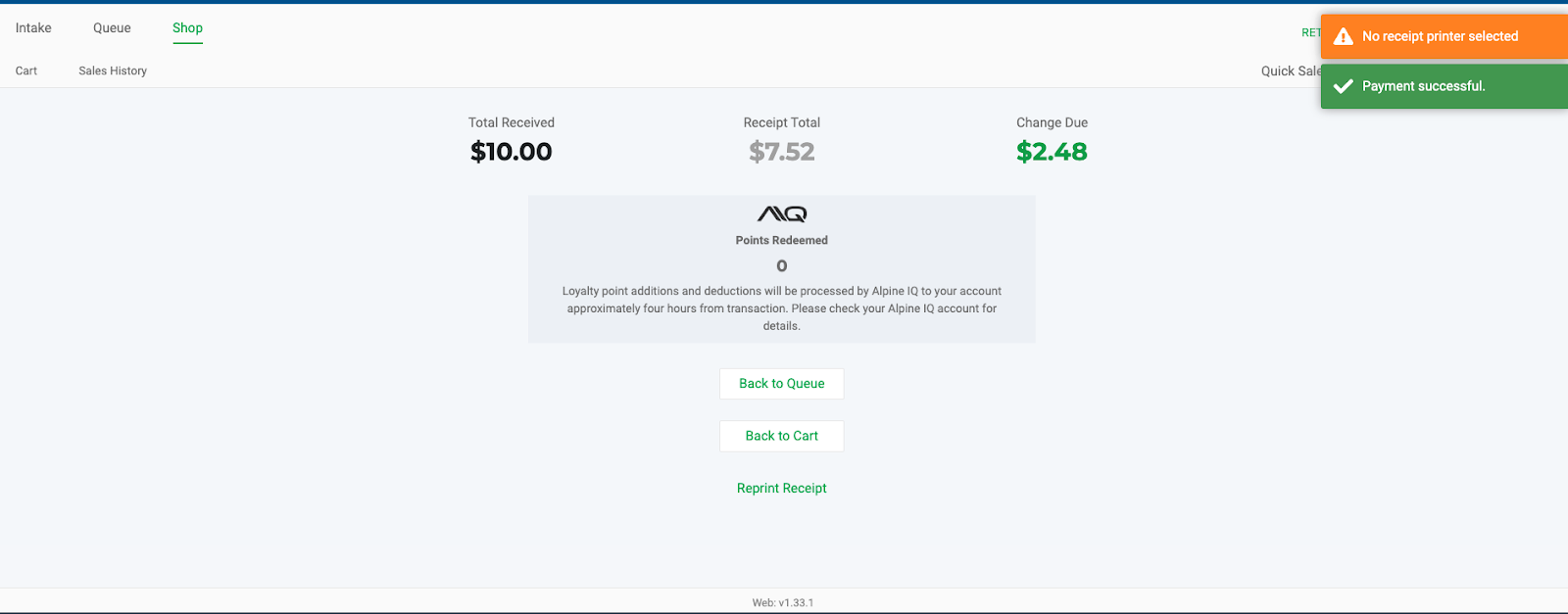

    The screenshot shows the Flourish POS payment confirmation screen after a successful Vector Payments (Point of Banking) transaction, displaying a Total Received of $10.00, a…
Possible Error Messages

Reports in Flourish Software

Reports display “Point of Banking (POB)”.

Transaction By Facility

Till Report

The screenshot shows the Flourish POS payment screen during checkout, with an order total of $110.22 and the Point of Banking (POB) payment method selected.

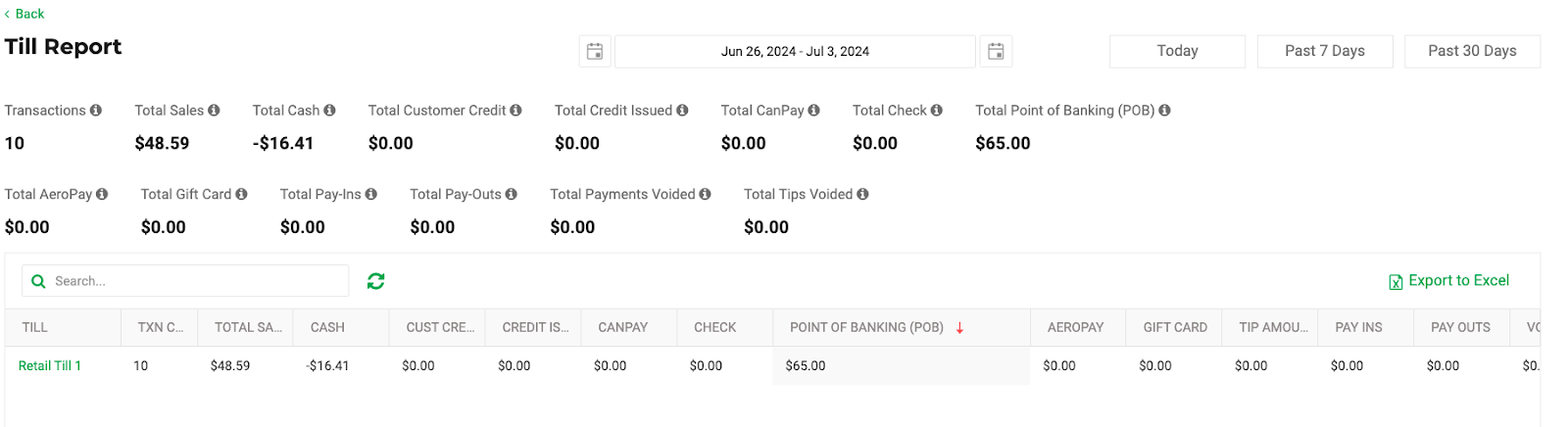

The image shows the Till Report screen in Flourish Software, filtered for the date range June 26–July 3, 2024, displaying a summary row for "Retail Till 1" with 10 transactions…

Transaction Detail
